INTRODUCTION

DMC single pulse dust remover adopts the pulse blowing dust removal method, which is characterized by high dust removal effect, appropriate air volume, long filter bag life, small maintenance workload, and safe and reliable operation.

It is suitable for dust removal and purification of non fibrous industrial dust and material recovery in various industrial and mining enterprises.

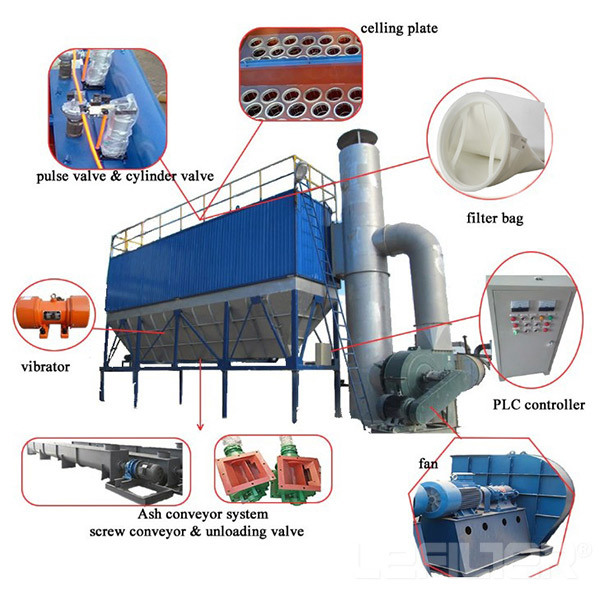

WORKING PRINCIPLE

Dusty gas goes in from the air intake of the dust collector and into the ash bucket through the partition board, and at the same time the air flow slows down.

Due to the inertia, the coarse particles in the gas will fall into the ash bucket, and the fine dust particles will go up along with the gas and into the filtering chamber.

The powder dust will stick onto the surface of the filter bag, and the purified gas will go into the upper cleaning room through the filter bag and be sucked by the main air blower of the dust collecting system and discharged into the air.

ADVANTAGES

– Line spraying dust removal

– Good ash removal effect

– Long service life of filter bag

– Safety and reliable operation

Technical Specifications

DMC_Dust_Collector_Technical_ParametersDownload

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
