INTRODUCTION

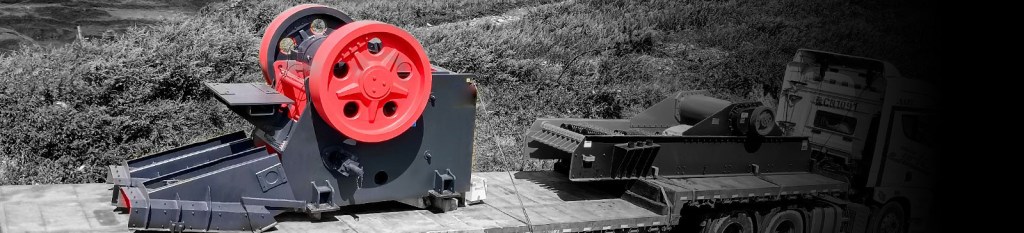

The HDX german type jaw crusher is an upgraded product based on the HD German type jaw crusher based on the combination of many customer sites and market needs. It saves space, easy to operate, and reduces the cost of infrastructure construction, installation, operation and maintenance.

ADVANTAGES

– Integral motor frame

The integral motor frame makes the installation easier; reduces the installation space; The crusher moves synchronously with the integral motor main shaft, which improves the load on the V-belt.

– Steel toggle plate

The steel toggle plate is light in weight, easy to replace, and bends when exceeded, avoiding damage to the conveyor belt when the traditional cast iron toggle plate breaks and falls.

– Wedge adjustment

There are two adjustment methods: mechanical and hydraulic. The discharge opening can be adjusted within a few minutes, which greatly reduces labor intensity and downtime; this system is especially effective to clean the cavity.

COMPLETELY NEW DESING OF LTV

Technical Specifications

HDX_Series_German_Jaw_Crusher_Technical_ParametersDownload

Note: processing Capacity May Vary With Different Materials And Feeding Sizes.
